Monitor Marine
Deck Hardware & Lifting Solutions
PRODUCT RANGE
- Titanium Lifting Points
- Helicopter Tie-Down Solutions
- Pull-Up and Retractable Deck Cleats
- Lifting Solutions and Multi-Purpose Connectors
- Flush Pad Eyes
- Hatch Handles
- Snap-Shut Latches
In-Mar Systems offers Monitor Marine deck hardware and lifting solutions for superyacht, commercial marine, military, and other demanding applications. Designed and manufactured in the United Kingdom, the Monitor Marine range includes lifting points, helicopter tie-downs, deck cleats, hatch and locker handles, fastening systems, and other precision-engineered marine fittings.
Monitor Marine combines durable construction, clean design, and precision engineering to deliver dependable deck hardware for demanding marine applications. The product range is suited to both one-off vessel builds and production programs requiring dependable performance and a refined finished appearance.
Monitor Marine combines durable construction, clean design, and precision engineering to deliver dependable deck hardware for demanding marine applications. The product range is suited to both one-off vessel builds and production programs requiring dependable performance and a refined finished appearance.
NEW: 7-TON TITANIUM LIFTING POINTS
Monitor Marine’s new 5182 titanium lifting points provide a strong, compact, and unobtrusive lifting solution for tender craft and other demanding marine applications. Designed to mount flush with the deck, each system uses a removable shackle assembly and is engineered for a 7-metric-ton Safe Working Load.
Manufactured from Ti-5Al-2.5Sn titanium alloy, the lifting points offer high strength, low weight, and excellent resistance to marine corrosion. Two configurations are available to suit different deck and structural requirements.
Manufactured from Ti-5Al-2.5Sn titanium alloy, the lifting points offer high strength, low weight, and excellent resistance to marine corrosion. Two configurations are available to suit different deck and structural requirements.

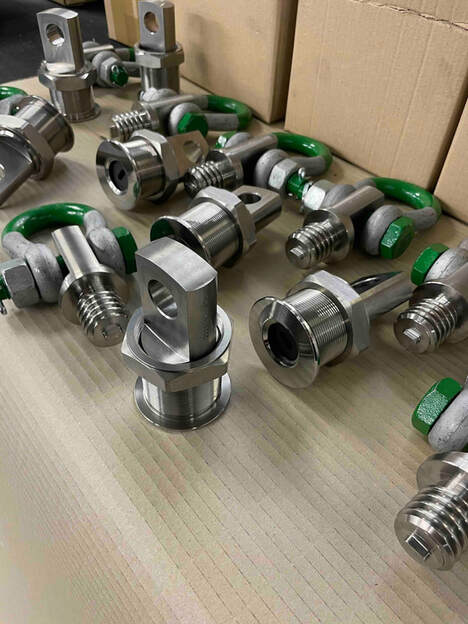

5182-MT Male Tang Titanium Lifting Point
The 5182-MT is a male-tang, screw-in titanium lifting point designed to connect with a vessel-specific hull bracket and tie rod. Its flush deck fitting provides a clean, unobtrusive appearance when the removable shackle assembly is not installed.
Key details
Key details
- 7-tonne / 68.65 kN Safe Working Load
- Ti-5Al-2.5Sn titanium alloy
- Removable 7T bow shackle
- Flush-mounted deck fitting
- Brushed and mirror-polished finish
- Approximate assembly weight: 1.27 kg

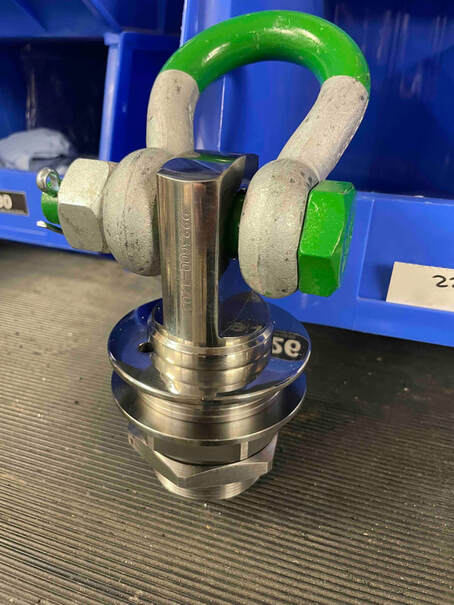

5182-FM Flush-Mount Titanium Lifting Point
The 5182-FM provides a flush-mount configuration with packing washers for installation through the structural deck. The removable shackle assembly screws into the fitting when required, while the sealed deck fitting maintains a clean profile when not in use.
Key details
Key details
- 7-tonne / 68.65 kN Safe Working Load
- Ti-5Al-2.5Sn titanium alloy
- Removable 7T bow shackle
- Flush-mounted deck fitting
- Acetal sealing plug
- Approximate assembly weight: 1.44 kg
Helicopter Tie-Down Solutions
Flush Pad Eyes
Snap Shut Latches
Pull-Up Cleats

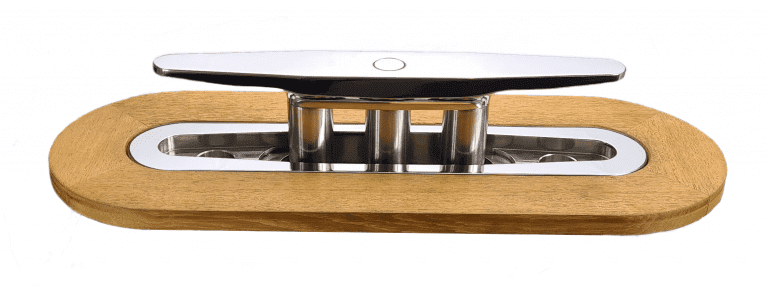

Retractable Deck Cleats
Lifting Solutions & Multi–Purpose Connectors
Hatch Handles
